Examples for Scipy introduction#

This is a collection of examples for introductory Scipy. See the Scipy page for the main introduction.

import numpy as np
import matplotlib.pyplot as plt

import scipy as sp

Hide code cell source

# Machinery to store outputs for later use.
# This is for rendering in the Jupyter Book version of these pages.
from myst_nb import glue

Finding the minimum of a smooth function#

Demos various methods to find the minimum of a function.

def f(x):
    return x**2 + 10 * np.sin(x)

x = np.arange(-5, 5, 0.1)
plt.plot(x, f(x));
../../_images/75d2b66f146fb2b40ad0a16f2e0abb6cd286aba84c7950dda9ba40c1e7a7f757.png
# Now find the minimum with a few methods
# The default (Nelder Mead)
print(sp.optimize.minimize(f, x0=0))
  message: Optimization terminated successfully.
  success: True
   status: 0
      fun: -7.945823375615215
        x: [-1.306e+00]
      nit: 5
      jac: [-1.192e-06]
 hess_inv: [[ 8.589e-02]]
     nfev: 12
     njev: 6

Other examples#

connect_measurements#

Demo connected components

Extracting and labeling connected components in a 2D array

# Generate some binary data
x, y = np.indices((100, 100))
sig = (
    np.sin(2 * np.pi * x / 50.0)
    * np.sin(2 * np.pi * y / 50.0)
    * (1 + x * y / 50.0**2) ** 2
)
mask = sig > 1
plt.figure(figsize=(7, 3.5))
plt.subplot(1, 2, 1)
plt.imshow(sig)
plt.axis("off")
plt.title("sig")

plt.subplot(1, 2, 2)
plt.imshow(mask, cmap="gray")
plt.axis("off")
plt.title("mask")
plt.subplots_adjust(wspace=0.05, left=0.01, bottom=0.01, right=0.99, top=0.9);

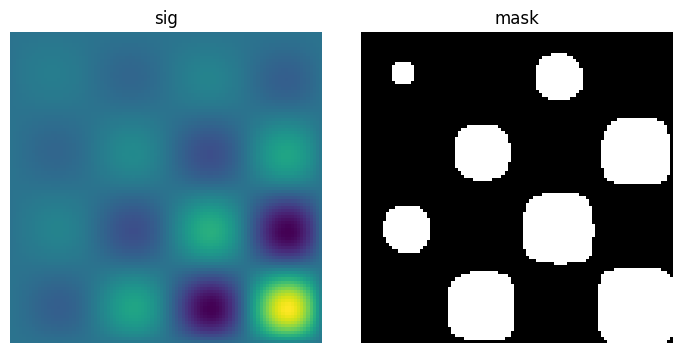

../../_images/8d6fda3a8f3fc76b30690aebe4d053f0e789fd60d676adacbab59847304f38c7.png

Label connected components

labels, nb = sp.ndimage.label(mask)
plt.figure(figsize=(3.5, 3.5))
plt.imshow(labels)
plt.title("label")
plt.axis("off")
plt.subplots_adjust(wspace=0.05, left=0.01, bottom=0.01, right=0.99, top=0.9);
../../_images/5c85996283a5c4a35d2afb6a8d066d9eada9bc0a2647d4dea36c27e5ea01a967.png
# Extract the 4th connected component, and crop the array around it
sl = sp.ndimage.find_objects(labels == 4)
plt.figure(figsize=(3.5, 3.5))
plt.imshow(sig[sl[0]])
plt.title("Cropped connected component")
plt.axis("off")
plt.subplots_adjust(wspace=0.05, left=0.01, bottom=0.01, right=0.99, top=0.9);
../../_images/d2109f8f258f97aef55225430fea066972a64502f37a1cbbe8749e271017fa39.png

image_filters#

Plot filtering on images

Demo filtering for denoising of images.

# Load some data
face = sp.datasets.face(gray=True)
face = face[:512, -512:]  # crop out square on right
# Apply a variety of filters
noisy_face = np.copy(face).astype(float)
rng = np.random.default_rng()
noisy_face += face.std() * 0.5 * rng.standard_normal(face.shape)
blurred_face = sp.ndimage.gaussian_filter(noisy_face, sigma=3)
median_face = sp.ndimage.median_filter(noisy_face, size=5)
wiener_face = sp.signal.wiener(noisy_face, (5, 5))
plt.figure(figsize=(12, 3.5))
plt.subplot(141)
plt.imshow(noisy_face, cmap="gray")
plt.axis("off")
plt.title("noisy")
plt.subplot(142)
plt.imshow(blurred_face, cmap="gray")
plt.axis("off")
plt.title("Gaussian filter")
plt.subplot(143)
plt.imshow(median_face, cmap="gray")
plt.axis("off")
plt.title("median filter")
plt.subplot(144)
plt.imshow(wiener_face, cmap="gray")
plt.title("Wiener filter")
plt.axis("off")
plt.subplots_adjust(wspace=0.05, left=0.01, bottom=0.01, right=0.99, top=0.99);

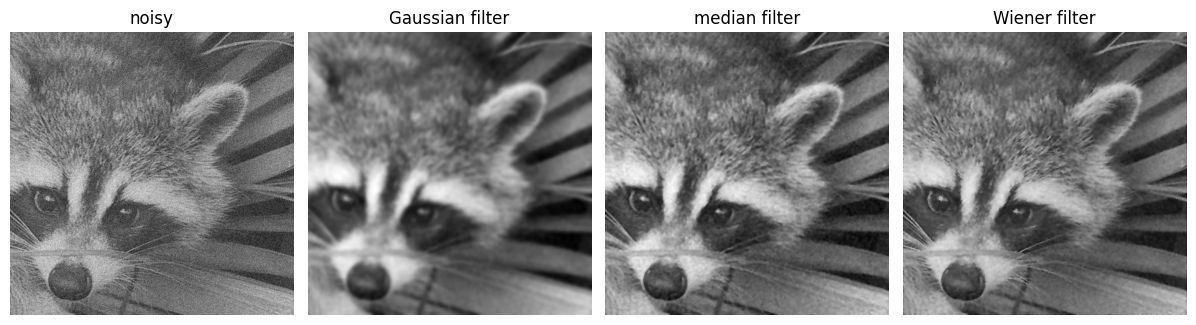

../../_images/24249448778fcec34483a29ab8e2ca85fa322ae4154ad81b1832177a5c082b28.png

image_transform#

Plot geometrical transformations on images

Demo geometrical transformations of images.

# Load some data
face = sp.datasets.face(gray=True)

# Apply a variety of transformations
shifted_face = sp.ndimage.shift(face, (50, 50))
shifted_face2 = sp.ndimage.shift(face, (50, 50), mode="nearest")
rotated_face = sp.ndimage.rotate(face, 30)
cropped_face = face[50:-50, 50:-50]
zoomed_face = sp.ndimage.zoom(face, 2)
zoomed_face.shape
(1536, 2048)
plt.figure(figsize=(15, 3))
plt.subplot(151)
plt.imshow(shifted_face, cmap="gray")
plt.axis("off")
plt.subplot(152)
plt.imshow(shifted_face2, cmap="gray")
plt.axis("off")
plt.subplot(153)
plt.imshow(rotated_face, cmap="gray")
plt.axis("off")
plt.subplot(154)
plt.imshow(cropped_face, cmap="gray")
plt.axis("off")
plt.subplot(155)
plt.imshow(zoomed_face, cmap="gray")
plt.axis("off")
plt.subplots_adjust(wspace=0.05, left=0.01, bottom=0.01, right=0.99, top=0.99);

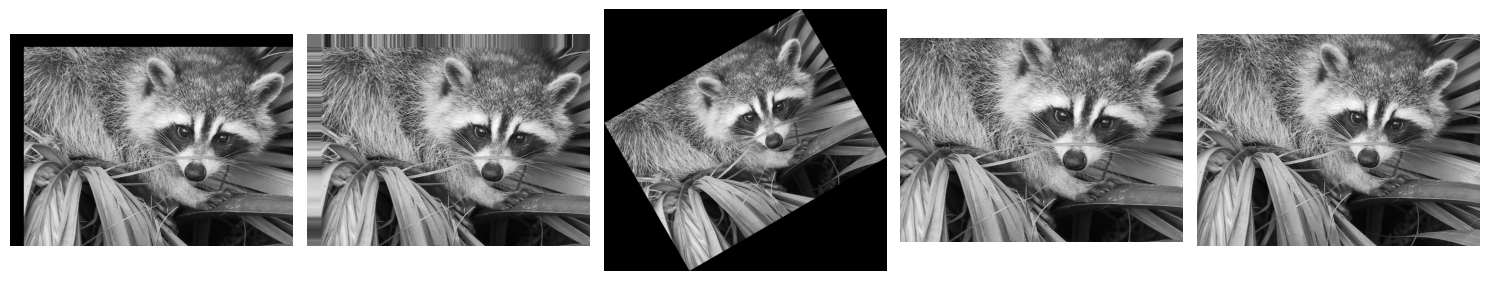

../../_images/9634e249fc54f4e717f235d5b785ec0d429b87b8d9d9130f878f7370a70c381a.png

Mathematical morphology#

Demo mathematical morphology

A basic demo of binary opening and closing.

# Generate some binary data
rng = np.random.default_rng(0)
a = np.zeros((50, 50))
a[10:-10, 10:-10] = 1
a += 0.25 * rng.standard_normal(a.shape)
mask = a >= 0.5
# Apply mathematical morphology
opened_mask = sp.ndimage.binary_opening(mask)
closed_mask = sp.ndimage.binary_closing(opened_mask)
# Plot
plt.figure(figsize=(12, 3.5))
plt.subplot(141)
plt.imshow(a, cmap="gray")
plt.axis("off")
plt.title("a")
plt.subplot(142)
plt.imshow(mask, cmap="gray")
plt.axis("off")
plt.title("mask")
plt.subplot(143)
plt.imshow(opened_mask, cmap="gray")
plt.axis("off")
plt.title("opened_mask")
plt.subplot(144)
plt.imshow(closed_mask, cmap="gray")
plt.title("closed_mask")
plt.axis("off")
plt.subplots_adjust(wspace=0.05, left=0.01, bottom=0.01, right=0.99, top=0.99);

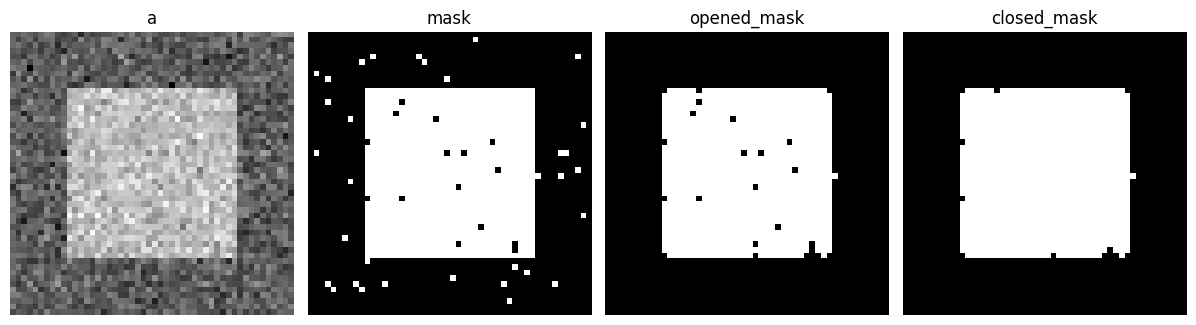

../../_images/014c787a9e71fbe890698bc8e7572592f2e3ff9393e9c5a73d4e7ccdb8ff0c1d.png

optimize_example2#

Minima and roots of a function

Demos finding minima and roots of a function.

Define the function:

x = np.arange(-10, 10, 0.1)

def f(x):
    return x**2 + 10 * np.sin(x)

Find minima:

# Global optimization
grid = (-10, 10, 0.1)
xmin_global = sp.optimize.brute(f, (grid,))
print(f"Global minima found {xmin_global}")
Global minima found [-1.30641113]
# Constrain optimization
xmin_local = sp.optimize.fminbound(f, 0, 10)
print(f"Local minimum found {xmin_local}")
Local minimum found 3.8374671194983834

Root finding

root = sp.optimize.root(f, 1)  # our initial guess is 1
print(f"First root found {root.x}")
root2 = sp.optimize.root(f, -2.5)
print(f"Second root found {root2.x}")
First root found [0.]
Second root found [-2.47948183]

Plot function, minima, and roots

fig = plt.figure(figsize=(6, 4))
ax = fig.add_subplot(111)
# Plot the function
ax.plot(x, f(x), "b-", label="f(x)")
# Plot the minima
xmins = np.array([xmin_global[0], xmin_local])
ax.plot(xmins, f(xmins), "go", label="Minima")
# Plot the roots
roots = np.array([root.x, root2.x])
ax.plot(roots, f(roots), "kv", label="Roots")
# Decorate the figure
ax.legend(loc="best")
ax.set_xlabel("x")
ax.set_ylabel("f(x)")
ax.axhline(0, color="gray");

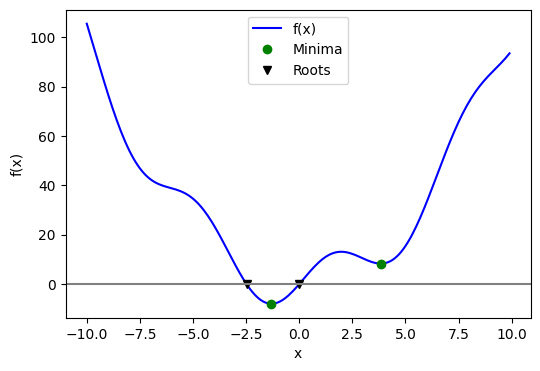

../../_images/1502577463b2f878acada22079d4900d125e7c05d351a63a2c3c30f9d6d860fe.png

Plotting and manipulating FFTs for filtering#

Plot the power of the FFT of a signal and inverse FFT back to reconstruct a signal.

This example demonstrates scipy.fft.fft(), scipy.fft.fftfreq() and scipy.fft.ifft(). It implements a basic filter that is very suboptimal, and should not be used.

Generate the signal#

# Seed the random number generator
rng = np.random.default_rng(27446968)

time_step = 0.02
period = 5.0

time_vec = np.arange(0, 20, time_step)
sig = np.sin(2 * np.pi / period * time_vec) + 0.5 * rng.normal(size=time_vec.size)
plt.figure(figsize=(6, 5))
plt.plot(time_vec, sig, label="Original signal")

# Store the figure for the book pages.
glue('original_signal_fig', plt.gcf(), display=False)
../../_images/23a942dd040a823695d0cebd8dc5329962d9c72d544e8f0c232386f1d7e59c6b.png

Compute and plot the power#

# The FFT of the signal
sig_fft = sp.fft.fft(sig)

# And the power (sig_fft is of complex dtype)
power = np.abs(sig_fft) ** 2

# The corresponding frequencies
sample_freq = sp.fft.fftfreq(sig.size, d=time_step)

Find the peak frequency#

We can focus on only the positive frequencies.

pos_mask = np.where(sample_freq > 0)
freqs = sample_freq[pos_mask]
peak_freq = freqs[power[pos_mask].argmax()]

Check that the found peak frequency does indeed correspond to the frequency that we generate the signal with:

np.allclose(peak_freq, 1.0 / period)
True
# Plot the FFT power
plt.figure(figsize=(6, 5))
plt.plot(sample_freq, power)
plt.xlabel("Frequency [Hz]")
plt.ylabel("power")
# An inner plot to show the peak frequency
axes = plt.axes((0.55, 0.3, 0.3, 0.5))
plt.title("Peak frequency")
plt.plot(freqs[:8], power[pos_mask][:8])
plt.setp(axes, yticks=[])

# Store the figure for the book pages.
glue('fft_of_signal_fig', plt.gcf(), display=False)
../../_images/5063628aeaf1ce8d26a6db537e8c05e2a7866c8ba4f904d87c08c0580ce41b21.png

scipy.signal.find_peaks_cwt can also be used for more advanced peak detection.

Remove all the high frequencies#

We now remove all the high frequencies and transform back from frequencies to signal.

high_freq_fft = sig_fft.copy()
high_freq_fft[np.abs(sample_freq) > peak_freq] = 0
filtered_sig = sp.fft.ifft(high_freq_fft)
plt.figure(figsize=(6, 5))
plt.plot(time_vec, sig, label="Original signal")
plt.plot(time_vec, filtered_sig, linewidth=3, label="Filtered signal")
plt.xlabel("Time [s]")
plt.ylabel("Amplitude")
plt.legend(loc="best")

# Store the figure for the book pages.
glue('fft_filter_fig', plt.gcf(), display=False)
/Volumes/zorg/mb312/.virtualenvs/sp-lectures/lib/python3.12/site-packages/matplotlib/cbook.py:1719: ComplexWarning: Casting complex values to real discards the imaginary part
  return math.isfinite(val)
/Volumes/zorg/mb312/.virtualenvs/sp-lectures/lib/python3.12/site-packages/matplotlib/cbook.py:1355: ComplexWarning: Casting complex values to real discards the imaginary part
  return np.asarray(x, float)
../../_images/e5e5592611fe772f69dc3deb3ac52346b4935f67b3a282b26a5f6e431e041823.png

Note This is actually a bad way of creating a filter: such a brutal cut-off in frequency space does not control distortion on the signal.

Filters should be created using the SciPy filter design code.

Spectrogram, power spectral density#

Demo spectrogram and power spectral density on a frequency chirp.

Generate a chirp signal:

# Seed the random number generator
np.random.seed(0)
time_step = 0.01
time_vec = np.arange(0, 70, time_step)

# A signal with a small frequency chirp
sig = np.sin(0.5 * np.pi * time_vec * (1 + 0.1 * time_vec))
plt.figure(figsize=(8, 5))
plt.plot(time_vec, sig)

# Store the figure for the book pages.
glue('chirp_fig', plt.gcf(), display=False)
../../_images/e0f11cd6448eb2a4d247e055c899e7902c337f308036a73eebaaf4f6983a13e0.png

Compute and plot the spectrogram

The spectrum of the signal on consecutive time windows

freqs, times, spectrogram = sp.signal.spectrogram(sig)
plt.figure(figsize=(5, 4))
plt.imshow(spectrogram, aspect="auto", cmap="hot_r", origin="lower")
plt.title("Spectrogram")
plt.ylabel("Frequency band")
plt.xlabel("Time window")
plt.tight_layout();

# Store the figure for the book pages.
glue('spectrogram_fig', plt.gcf(), display=False)
../../_images/4a92ed925f256a3784009adb4d32c3e7b5e5c0e90ed4c90c51166c7be81a2650.png

Next we compute and plot the power spectral density (PSD)

The power of the signal per frequency band:

freqs, psd = sp.signal.welch(sig)
plt.figure(figsize=(5, 4))
plt.semilogx(freqs, psd)
plt.title("PSD: power spectral density")
plt.xlabel("Frequency")
plt.ylabel("Power")
plt.tight_layout();
# Store the figure for the book pages.
glue('psd_fig', plt.gcf(), display=False)
../../_images/f10a69eddd2dd582f7c7e4bbf12a8200a0047465c7dda7059591deccc0c8c4b5.png

t_test#

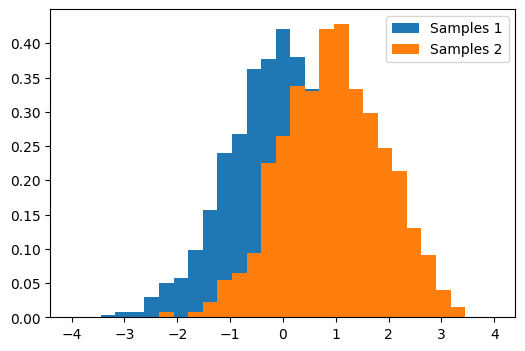

Comparing 2 sets of samples from Gaussians

# Generates 2 sets of observations
rng = np.random.default_rng(27446968)
samples1 = rng.normal(0, size=1000)
samples2 = rng.normal(1, size=1000)
# Compute a histogram of the sample
bins = np.linspace(-4, 4, 30)
histogram1, bins = np.histogram(samples1, bins=bins, density=True)
histogram2, bins = np.histogram(samples2, bins=bins, density=True)

Hide code cell source

plt.figure(figsize=(6, 4))
plt.hist(samples1, bins=bins, density=True, label="Samples 1")  # type: ignore[arg-type]
plt.hist(samples2, bins=bins, density=True, label="Samples 2")  # type: ignore[arg-type]
plt.legend(loc="best");
../../_images/b5fc09fe2d14bb6253266b4933a587755c478beb72a12cafe29bab6d6b41018f.png

Simple image blur by convolution with a Gaussian kernel#

Blur an image (data/elephant.png) using a Gaussian kernel.

Convolution is easy to perform with FFT: convolving two signals boils down to multiplying their FFTs (and performing an inverse FFT).

The original image:

# read image
img = plt.imread("data/elephant.png")
plt.figure()
plt.imshow(img);
../../_images/d4bb281dcc1c842062bde9ac50ade9b9bc703427e8165756911490ed68152649.png

Prepare an Gaussian convolution kernel

# First a 1-D  Gaussian
t = np.linspace(-10, 10, 30)
bump = np.exp(-0.1 * t**2)
bump /= np.trapezoid(bump)  # normalize the integral to 1

# make a 2-D kernel out of it
kernel = bump[:, np.newaxis] * bump[np.newaxis, :]

Implement convolution via FFT

# Padded Fourier transform, with the same shape as the image
# We use {func}`scipy.fft.fft2` to have a 2D FFT
kernel_ft = sp.fft.fft2(kernel, s=img.shape[:2], axes=(0, 1))

# convolve
img_ft = sp.fft.fft2(img, axes=(0, 1))

# the 'newaxis' is to match to color direction
img2_ft = kernel_ft[:, :, np.newaxis] * img_ft
img2 = sp.fft.ifft2(img2_ft, axes=(0, 1)).real

# clip values to range
img2 = np.clip(img2, 0, 1)
# plot output
plt.figure()
plt.imshow(img2);

# Store figure for use in main page.
glue("blur_fig", plt.gcf(), display=False)
../../_images/424ea78c5c2e6ca1d4c212b250b1af2086a88a43121f9c55fbe288861117928f.png

Further exercise (only if you are familiar with this stuff):

A “wrapped border” appears in the upper left and top edges of the image. This is because the padding is not done correctly, and does not take the kernel size into account (so the convolution “flows out of bounds of the image”). Try to remove this artifact.

A function to do it: scipy.signal.fftconvolve()

The above exercise was only for didactic reasons: there exists a function in Scipy that will do this for us, and probably do a better job: scipy.signal.fftconvolve()

# mode='same' is there to enforce the same output shape as input arrays
# (ie avoid border effects).
img3 = sp.signal.fftconvolve(img, kernel[:, :, np.newaxis], mode="same")
plt.figure()
plt.imshow(img3);
../../_images/15ddb6baaa81991ca39b6608b6d5b94d7d3ec15cf374d31f3e4e7304b047017f.png

Note that we still have a decay to zero at the border of the image. Using scipy.ndimage.gaussian_filter() would get rid of this artifact.

Crude periodicity finding#

Discover the periods in evolution of animal populations (data/populations.txt)

Load the data:

data = np.loadtxt("data/populations.txt")
years = data[:, 0]
populations = data[:, 1:]

Plot the data:

plt.figure()
plt.plot(years, populations * 1e-3)
plt.xlabel("Year")
plt.ylabel(r"Population number ($\cdot10^3$)")
plt.legend(["hare", "lynx", "carrot"], loc=1);

# Store figure for use in main page.
glue("periodicity_fig", plt.gcf(), display=False)
../../_images/244fe511e848013f43432e8e31fe845b3d51149ec0338e4dcad2275eb6e332d7.png
# Plot its periods
ft_populations = sp.fft.fft(populations, axis=0)
frequencies = sp.fft.fftfreq(populations.shape[0], years[1] - years[0])
periods = 1 / frequencies
/var/folders/hd/rfxyn9gx4bl39bvwzrgn3rtr0000gn/T/ipykernel_91756/2995045604.py:4: RuntimeWarning: divide by zero encountered in divide
  periods = 1 / frequencies
plt.figure()
plt.plot(periods, abs(ft_populations) * 1e-3, "o")
plt.xlim(0, 22)
plt.xlabel("Period")
plt.ylabel(r"Power ($\cdot10^3$)");

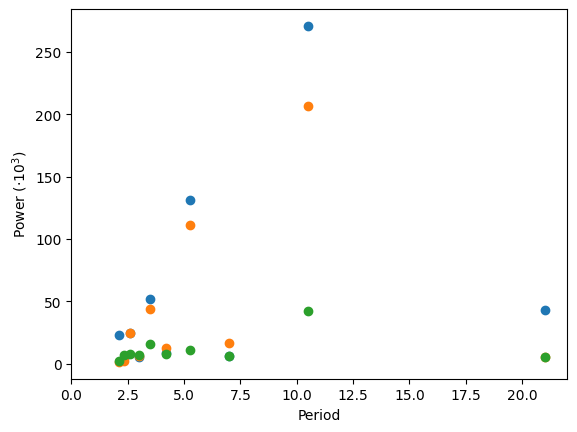

../../_images/6ccf40be02c47ca60843b7c2291b039ecec9fb51298a0089e5c3ec0f9d0d64e9.png

There’s probably a period of around 10 years (obvious from the plot), but for this crude a method, there’s not enough data to say much more.
