Scipy sparse arrays#

Section author: Robert Cimrman

(Dense) matrix is:

  • mathematical object

  • data structure for storing a 2D array of values

Important features:

  • memory allocated once for all items

    • usually a contiguous chunk, think NumPy ndarray

  • fast access to individual items (*)

Why Sparse Matrices?#

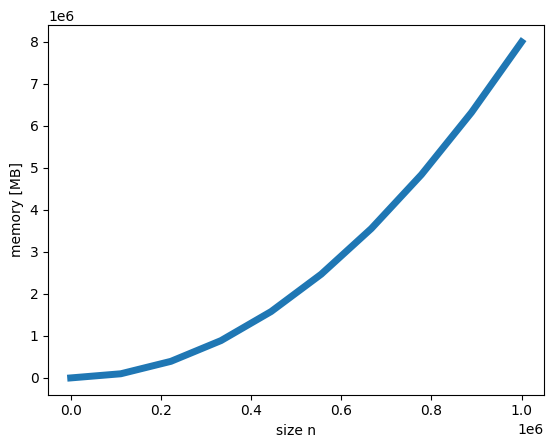

  • the memory grows like n**2 for dense matrix

  • small example (double precision matrix):

import numpy as np
import matplotlib.pyplot as plt

x = np.linspace(0, 1e6, 10)
plt.plot(x, 8.0 * (x**2) / 1e6, lw=5)
plt.xlabel('size n')
plt.ylabel('memory [MB]')

Text(0, 0.5, 'memory [MB]')
../../_images/09afcacb290d5cd47d39b272130acef0a3367c7cbc99b5cb03ae954517d29b34.png

Sparse Matrices vs. Sparse Matrix Storage Schemes#

  • sparse matrix is a matrix, which is almost empty

  • storing all the zeros is wasteful -> store only nonzero items

  • think compression

  • pros: huge memory savings

  • cons: slow access to individual items, but it depends on actual storage scheme.

Typical Applications#

  • solution of partial differential equations (PDEs)

    • the finite element method

    • mechanical engineering, electrotechnics, physics, …

  • graph theory

    • nonzero at (i, j) means that node i is connected to node j

  • natural language processing

    • nonzero at (i, j) means that the document i contains the word j

  • …

Prerequisites

Sparsity Structure Visualization#

  • spy() from matplotlib

  • example plots:
