Image manipulation and processing using NumPy and SciPy

Authors: Emmanuelle Gouillart, Gaël Varoquaux

Show code cell source

Hide code cell source

# Our usual imports.
import numpy as np
import matplotlib.pyplot as plt

This section addresses basic image manipulation and processing using the core scientific modules NumPy and SciPy. Some of the operations covered by this tutorial may be useful for other kinds of multidimensional array processing than image processing. In particular, the submodule scipy.ndimage provides functions operating on n-dimensional NumPy arrays.

See also

For more advanced image processing and image-specific routines, see the tutorial scikit-image: image processing, dedicated to the skimage module.

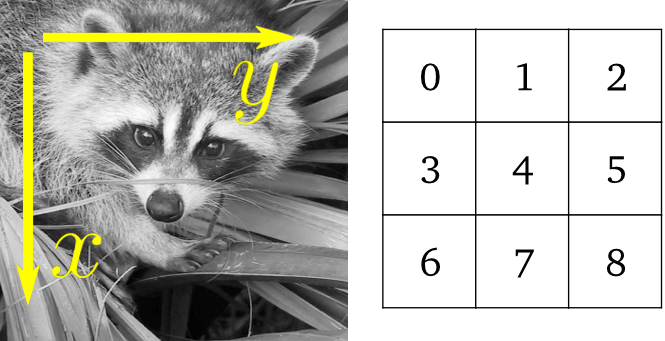

Image = 2-D numerical array

(or 3-D: CT, MRI, 2D + time; 4-D, …)

Here, image == NumPy array np.array

Tools used in this tutorial:

• numpy: basic array manipulation

• scipy: scipy.ndimage submodule dedicated to image processing (n-dimensional images). See the documentation:

import scipy as sp

Common tasks in image processing:

• Input/Output, displaying images

• Basic manipulations: cropping, flipping, rotating, …

• Image filtering: denoising, sharpening

• Image segmentation: labeling pixels corresponding to different objects

• Classification

• Feature extraction

• Registration

• …

Opening and writing to image files

Writing an array to an image file:

import scipy as sp
import imageio.v3 as iio

f = sp.datasets.face()
iio.imwrite("face.png", f)  # uses the Image module (PIL)

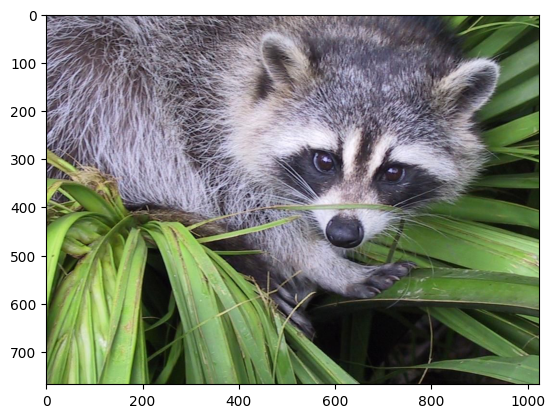

plt.imshow(f)

<matplotlib.image.AxesImage at 0x109496660>

face = iio.imread('face.png')
type(face)

numpy.ndarray

face.shape, face.dtype

((768, 1024, 3), dtype('uint8'))

dtype is uint8 for 8-bit images (0-255)

Opening raw files (camera, 3-D images)

face.tofile('face.raw') # Create raw file
face_from_raw = np.fromfile('face.raw', dtype=np.uint8)
face_from_raw.shape
face_from_raw.shape = (768, 1024, 3)

Need to know the shape and dtype of the image (how to separate data bytes).

For large data, use np.memmap for memory mapping:

face_memmap = np.memmap('face.raw', dtype=np.uint8, shape=(768, 1024, 3))

(data are read from the file, and not loaded into memory)

Working on a list of image files

rng = np.random.default_rng(27446968)
for i in range(10):
    im = rng.integers(0, 256, 10000, dtype=np.uint8).reshape((100, 100))
    iio.imwrite(f'random_{i:02d}.png', im)
from glob import glob
filelist = sorted(glob('random*.png'))
filelist

['random_00.png',
 'random_01.png',
 'random_02.png',
 'random_03.png',
 'random_04.png',
 'random_05.png',
 'random_06.png',
 'random_07.png',
 'random_08.png',
 'random_09.png']

Displaying images

Use matplotlib and imshow to display an image inside a matplotlib figure:

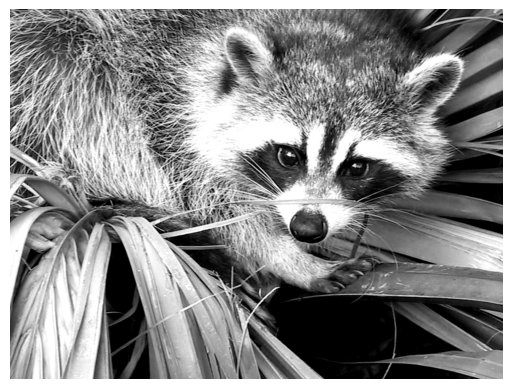

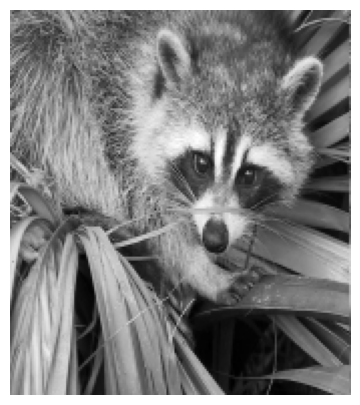

f = sp.datasets.face(gray=True)  # retrieve a grayscale image
plt.imshow(f, cmap=plt.cm.gray)

<matplotlib.image.AxesImage at 0x109952630>

Increase contrast by setting min and max values:

plt.imshow(f, cmap=plt.cm.gray, vmin=30, vmax=200)
# Remove axes and ticks.
# Semicolon ends line to suppress repr of Matplotlib objects.
plt.axis('off');

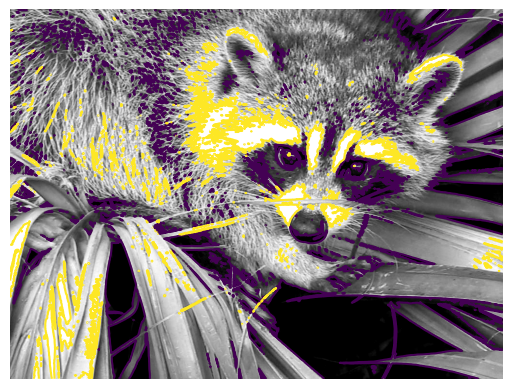

Draw contour lines:

plt.imshow(f, cmap=plt.cm.gray, vmin=30, vmax=200)
plt.contour(f, [50, 200])
plt.axis('off');

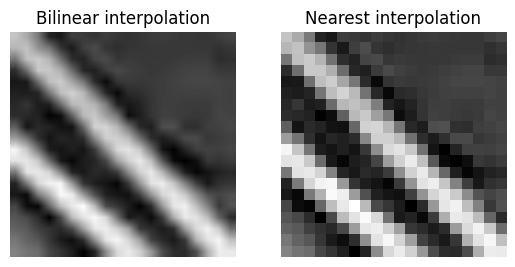

For smooth intensity variations, use interpolation='bilinear'. For fine inspection of intensity variations, use interpolation='nearest':

fix, axes = plt.subplots(1, 2)
axes[0].imshow(f[320:340, 510:530], cmap=plt.cm.gray, interpolation='bilinear')
axes[0].axis('off')
axes[0].set_title('Bilinear interpolation')
axes[1].imshow(f[320:340, 510:530], cmap=plt.cm.gray, interpolation='nearest')
axes[1].set_title('Nearest interpolation')
axes[1].axis('off');

See also

More interpolation methods are in Matplotlib’s examples.

Basic manipulations

Images are arrays: use the whole numpy machinery.

face = sp.datasets.face(gray=True)
face[0, 40]

np.uint8(127)

# Slicing
face[10:13, 20:23]

array([[141, 153, 145],
       [133, 134, 125],
       [ 96,  92,  94]], dtype=uint8)

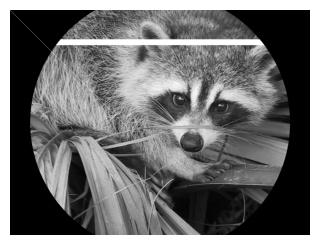

face[100:120] = 255

lx, ly = face.shape
X, Y = np.ogrid[0:lx, 0:ly]
mask = (X - lx / 2) ** 2 + (Y - ly / 2) ** 2 > lx * ly / 4
# Masks
face[mask] = 0
# Fancy indexing
face[range(400), range(400)] = 255

Show code cell source

Hide code cell source

plt.figure(figsize=(3, 3))
plt.axes((0, 0, 1, 1))
plt.imshow(face, cmap="gray")
plt.axis("off");

Statistical information

face = sp.datasets.face(gray=True)
face.mean()

np.float64(113.48026784261067)

face.max(), face.min()

(np.uint8(250), np.uint8(0))

np.histogram

Exercise 51

• Open as an array the scikit-image logo (https://scikit-image.org/_static/img/logo.png), or an image that you have on your computer.

• Crop a meaningful part of the image, for example the python circle in the logo.

• Display the image array using matplotlib. Change the interpolation method and zoom to see the difference.

• Transform your image to greyscale

• Increase the contrast of the image by changing its minimum and maximum values. Optional: use scipy.stats.scoreatpercentile (read the docstring!) to saturate 5% of the darkest pixels and 5% of the lightest pixels.

• Save the array to two different file formats (png, jpg, tiff)

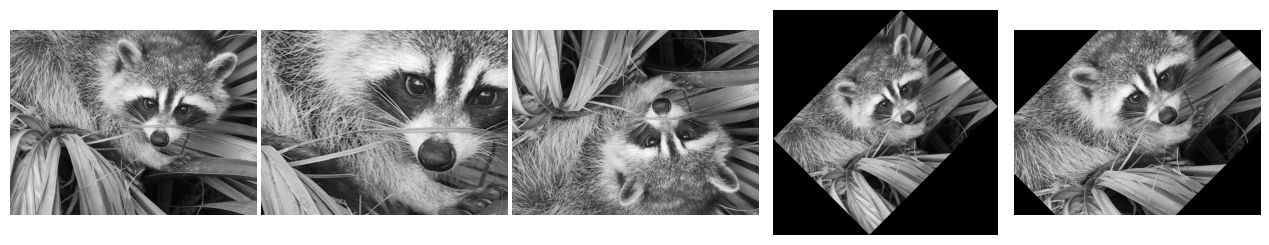

Geometrical transformations

face = sp.datasets.face(gray=True)
lx, ly = face.shape
# Cropping
crop_face = face[lx // 4: - lx // 4, ly // 4: - ly // 4]
# up <-> down flip
flip_ud_face = np.flipud(face)
# rotation
rotate_face = sp.ndimage.rotate(face, 45)
rotate_face_noreshape = sp.ndimage.rotate(face, 45, reshape=False)

Show code cell source

Hide code cell source

# Plot the transformed face.
fig, axes = plt.subplots(1, 5, figsize=(12.5, 2.5))
for i, img_arr in enumerate([face, crop_face, flip_ud_face,
                             rotate_face, rotate_face_noreshape]):
    axes[i].imshow(img_arr, cmap="gray")
    axes[i].axis('off')

plt.subplots_adjust(wspace=0.02, hspace=0.3, top=1, bottom=0.1, left=0, right=1);

Image filtering

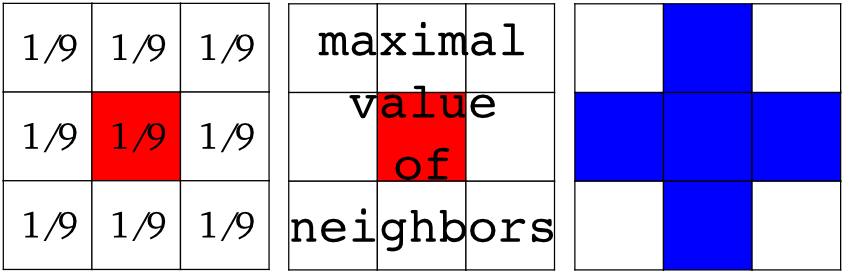

Local filters: replace the value of pixels by a function of the values of neighboring pixels.

Neighbourhood: square (choose size), disk, or more complicated structuring element.

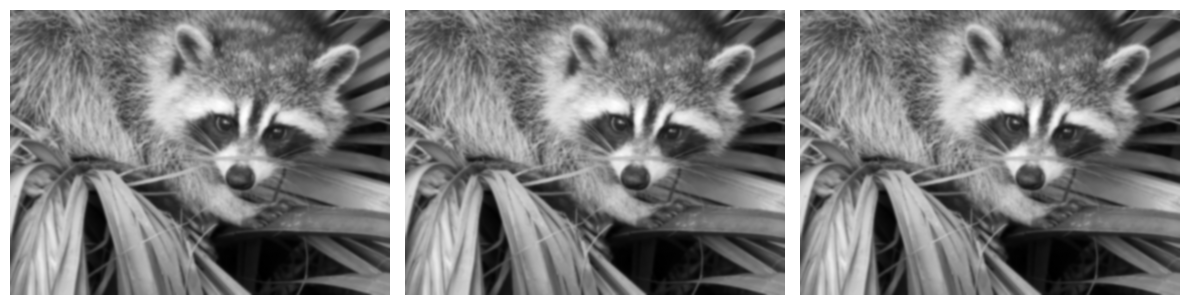

Blurring/smoothing

Gaussian filter from scipy.ndimage:

face = sp.datasets.face(gray=True)
blurred_face = sp.ndimage.gaussian_filter(face, sigma=3)
very_blurred = sp.ndimage.gaussian_filter(face, sigma=5)

Uniform filter

local_mean = sp.ndimage.uniform_filter(face, size=11)

Show code cell source

Hide code cell source

# Plot the figures.
fig, axes = plt.subplots(1, 3, figsize=(9, 3))
for i, img_arr in enumerate([blurred_face, very_blurred, local_mean]):
    axes[i].imshow(blurred_face, cmap="gray")
    axes[i].axis("off")

plt.subplots_adjust(wspace=0, hspace=0.0, top=0.99, bottom=0.01, left=0.01, right=0.99);

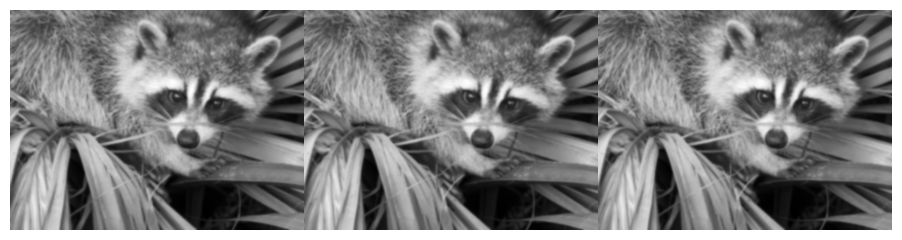

Sharpening

Sharpen a blurred image:

face = sp.datasets.face(gray=True).astype(float)
blurred_f = sp.ndimage.gaussian_filter(face, 3)

Increase the weight of edges by adding an approximation of the Laplacian:

filter_blurred_f = sp.ndimage.gaussian_filter(blurred_f, 1)
alpha = 30
sharpened = blurred_f + alpha * (blurred_f - filter_blurred_f)

Show code cell source

Hide code cell source

fig, axes = plt.subplots(1, 3, figsize=(12, 4))
for i, img_arr in enumerate([f, blurred_f, sharpened]):
    axes[i].imshow(blurred_face, cmap="gray")
    axes[i].axis("off")

plt.tight_layout();

Denoising

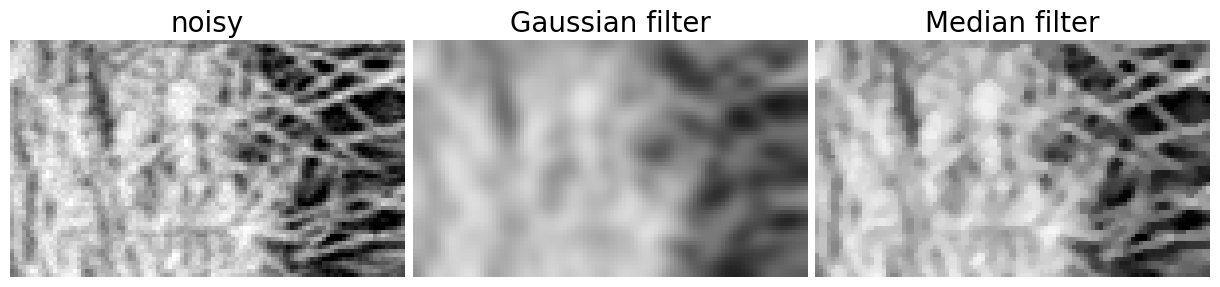

Noisy face:

f = sp.datasets.face(gray=True)
f = f[230:290, 220:320]

rng = np.random.default_rng()
noisy = f + 0.4 * f.std() * rng.random(f.shape)

A Gaussian filter smoothes the noise out… and the edges as well:

gauss_denoised = sp.ndimage.gaussian_filter(noisy, 2)

Most local linear isotropic filters blur the image (scipy.ndimage.uniform_filter)

A median filter preserves better the edges:

med_denoised = sp.ndimage.median_filter(noisy, 3)

Show code cell source

Hide code cell source

fig, axes = plt.subplots(1, 3, figsize=(12, 2.8))
for i, (name, img_arr) in enumerate([
    ['noisy', noisy],
    ['Gaussian filter', gauss_denoised],
    ['Median filter', med_denoised]]):
    axes[i].imshow(img_arr, cmap="gray", vmin=40, vmax=220)
    axes[i].axis("off")
    axes[i].set_title(name, fontsize=20)

plt.subplots_adjust(wspace=0.02, hspace=0.02, top=0.9, bottom=0, left=0, right=1);

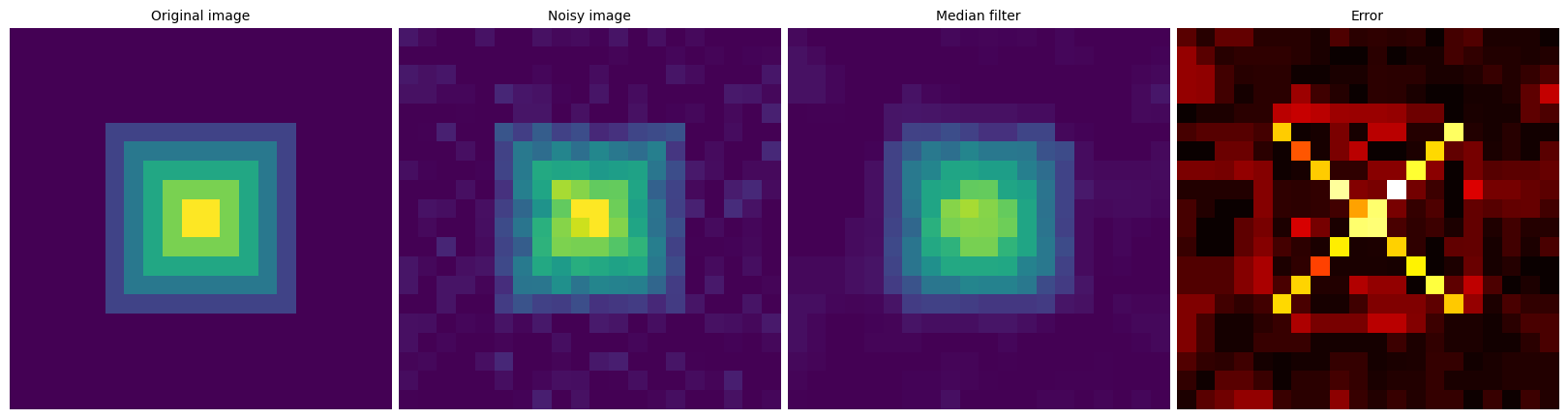

Median filter: better result for straight boundaries (low curvature):

im = np.zeros((20, 20))
im[5:-5, 5:-5] = 1
im = sp.ndimage.distance_transform_bf(im)
rng = np.random.default_rng()
im_noise = im + 0.2 * rng.standard_normal(im.shape)
im_med = sp.ndimage.median_filter(im_noise, 3)

Show code cell source

Hide code cell source

fig, axes = plt.subplots(1, 4, figsize=(16, 5))
for i, (name, img_arr) in enumerate([
    ['Original image', im],
    ['Noisy image', im_noise],
    ['Median filter', im_med]]):
    axes[i].imshow(img_arr, vmin=0, vmax=5)
    axes[i].axis("off")
    axes[i].set_title(name, fontsize=10)
axes[-1].imshow(np.abs(im - im_med), cmap="hot", interpolation="nearest")
axes[-1].axis("off")
axes[-1].set_title('Error', fontsize=10)

plt.subplots_adjust(wspace=0.02, hspace=0.02, top=0.9, bottom=0, left=0, right=1)

Other rank filter: scipy.ndimage.maximum_filter, scipy.ndimage.percentile_filter

Other local non-linear filters: Wiener (scipy.signal.wiener), etc.

Non-local filters

Exercise 52

• Create a binary image (of 0s and 1s) with several objects (circles, ellipses, squares, or random shapes).

• Add some noise (e.g., 20% of noise)

• Try two different denoising methods for denoising the image: gaussian filtering and median filtering.

• Compare the histograms of the two different denoised images. Which one is the closest to the histogram of the original (noise-free) image?

See also

More denoising filters are available in skimage.denoising, see the scikit-image: image processing tutorial.

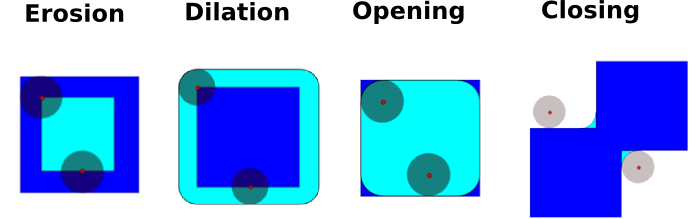

Mathematical morphology

See wikipedia for a definition of mathematical morphology.

Probe an image with a simple shape (a structuring element), and modify this image according to how the shape locally fits or misses the image.

Structuring element:

el = sp.ndimage.generate_binary_structure(2, 1)
el

array([[False,  True, False],
       [ True,  True,  True],
       [False,  True, False]])

el.astype(int)

array([[0, 1, 0],
       [1, 1, 1],
       [0, 1, 0]])

Erosion = minimum filter. Replace the value of a pixel by the minimal value covered by the structuring element.:

a = np.zeros((7,7), dtype=int)
a[1:6, 2:5] = 1
a

array([[0, 0, 0, 0, 0, 0, 0],
       [0, 0, 1, 1, 1, 0, 0],
       [0, 0, 1, 1, 1, 0, 0],
       [0, 0, 1, 1, 1, 0, 0],
       [0, 0, 1, 1, 1, 0, 0],
       [0, 0, 1, 1, 1, 0, 0],
       [0, 0, 0, 0, 0, 0, 0]])

sp.ndimage.binary_erosion(a).astype(a.dtype)

array([[0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 1, 0, 0, 0],
       [0, 0, 0, 1, 0, 0, 0],
       [0, 0, 0, 1, 0, 0, 0],
       [0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 0, 0, 0, 0]])

# Erosion removes objects smaller than the structure
sp.ndimage.binary_erosion(a, structure=np.ones((5,5))).astype(a.dtype)

array([[0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 0, 0, 0, 0],
       [0, 0, 0, 0, 0, 0, 0]])

Dilation: maximum filter:

a = np.zeros((5, 5))
a[2, 2] = 1
a

array([[0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0.],
       [0., 0., 1., 0., 0.],
       [0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0.]])

sp.ndimage.binary_dilation(a).astype(a.dtype)

array([[0., 0., 0., 0., 0.],
       [0., 0., 1., 0., 0.],
       [0., 1., 1., 1., 0.],
       [0., 0., 1., 0., 0.],
       [0., 0., 0., 0., 0.]])

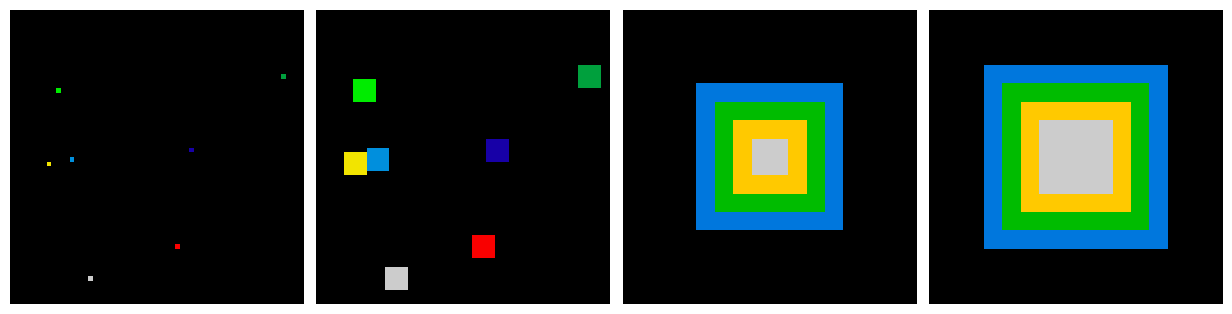

Also works for grey-valued images:

rng = np.random.default_rng(27446968)
im = np.zeros((64, 64))
x, y = (63*rng.random((2, 8))).astype(int)
im[x, y] = np.arange(8)

bigger_points = sp.ndimage.grey_dilation(im, size=(5, 5), structure=np.ones((5, 5)))

square = np.zeros((16, 16))
square[4:-4, 4:-4] = 1
dist = sp.ndimage.distance_transform_bf(square)
dilate_dist = sp.ndimage.grey_dilation(dist, size=(3, 3), \
        structure=np.ones((3, 3)))

Show code cell source

Hide code cell source

fig, axes = plt.subplots(1, 4, figsize=(12.5, 3))
for i, img_arr in enumerate([im, bigger_points, dist, dilate_dist]):
    axes[i].imshow(img_arr, interpolation='nearest', cmap='nipy_spectral')
    axes[i].axis("off")

plt.subplots_adjust(wspace=0, hspace=0.02, top=0.99, bottom=0.01, left=0.01, right=0.99)

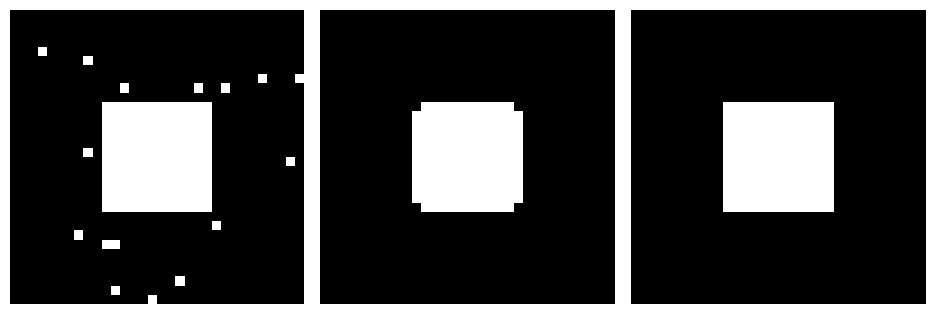

Opening: erosion + dilation:

a = np.zeros((5,5), dtype=int)
a[1:4, 1:4] = 1; a[4, 4] = 1
a

array([[0, 0, 0, 0, 0],
       [0, 1, 1, 1, 0],
       [0, 1, 1, 1, 0],
       [0, 1, 1, 1, 0],
       [0, 0, 0, 0, 1]])

# Opening removes small objects
sp.ndimage.binary_opening(a, structure=np.ones((3,3))).astype(int)

array([[0, 0, 0, 0, 0],
       [0, 1, 1, 1, 0],
       [0, 1, 1, 1, 0],
       [0, 1, 1, 1, 0],
       [0, 0, 0, 0, 0]])

# Opening can also smooth corners
sp.ndimage.binary_opening(a).astype(int)

array([[0, 0, 0, 0, 0],
       [0, 0, 1, 0, 0],
       [0, 1, 1, 1, 0],
       [0, 0, 1, 0, 0],
       [0, 0, 0, 0, 0]])

Application: remove noise:

square = np.zeros((32, 32))
square[10:-10, 10:-10] = 1
rng = np.random.default_rng(27446968)
x, y = (32*rng.random((2, 20))).astype(int)
square[x, y] = 1

open_square = sp.ndimage.binary_opening(square)

eroded_square = sp.ndimage.binary_erosion(square)
reconstruction = sp.ndimage.binary_propagation(eroded_square, mask=square)

Show code cell source

Hide code cell source

fig, axes = plt.subplots(1, 3, figsize=(9.5, 3))
for i, img_arr in enumerate([square, open_square, reconstruction]):
    axes[i].imshow(img_arr, interpolation='nearest', cmap='gray')
    axes[i].axis("off")

plt.subplots_adjust(wspace=0, hspace=0.02, top=0.99, bottom=0.01, left=0.01, right=0.99)

Closing: dilation + erosion

Many other mathematical morphology operations: hit and miss transform, tophat, etc.

Feature extraction

Edge detection

Synthetic data:

im = np.zeros((256, 256))
im[64:-64, 64:-64] = 1
im = sp.ndimage.rotate(im, 15, mode='constant')
im = sp.ndimage.gaussian_filter(im, 8)

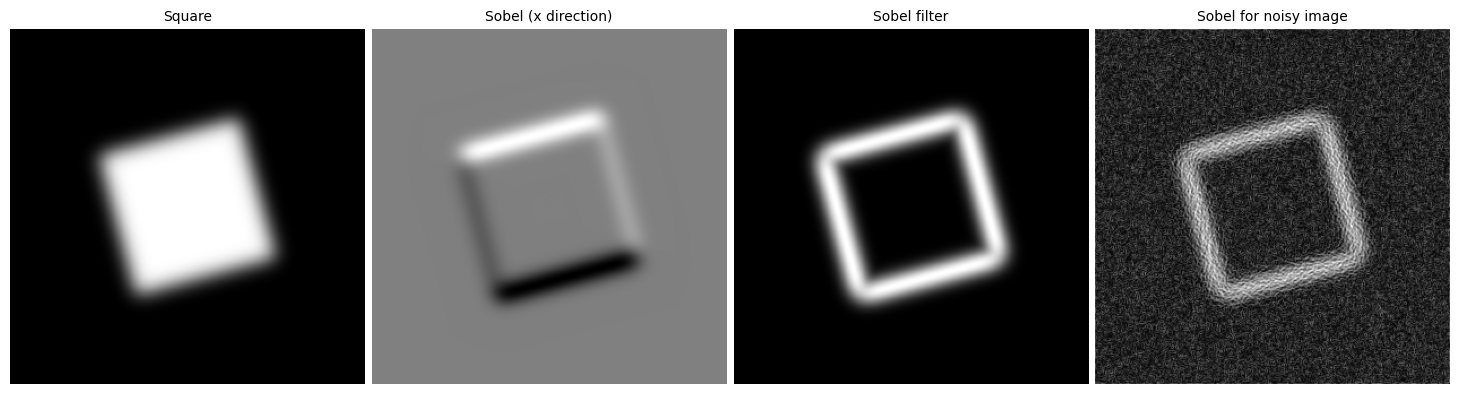

Use a gradient operator (Sobel) to find high intensity variations:

# Filter x and y.
sx = sp.ndimage.sobel(im, axis=0, mode="constant")
sy = sp.ndimage.sobel(im, axis=1, mode="constant")
# Combine x and y.
sob = np.hypot(sx, sy)

# Make a noisy image.
# Set random seed.
rng = np.random.default_rng(27446968)

noisy_im = im + 0.07 * rng.random(im.shape)

# Filter x and y.
n_sx = sp.ndimage.sobel(noisy_im, axis=0, mode="constant")
n_sy = sp.ndimage.sobel(noisy_im, axis=1, mode="constant")
# Combine x and y.
noisy_sob = np.hypot(n_sx, n_sy)

Show code cell source

Hide code cell source

fig, axes = plt.subplots(1, 4, figsize=(16, 5))
for i, (name, img_arr) in enumerate([
    ['Square', im],
    ['Sobel (x direction)', sx],
    ['Sobel filter', sob],
    ['Sobel for noisy image', noisy_sob]]):
    axes[i].imshow(img_arr, cmap='gray')
    axes[i].axis("off")
    axes[i].set_title(name, fontsize=10)

plt.subplots_adjust(wspace=0.02, hspace=0.02, top=1, bottom=0, left=0, right=0.9);

Segmentation

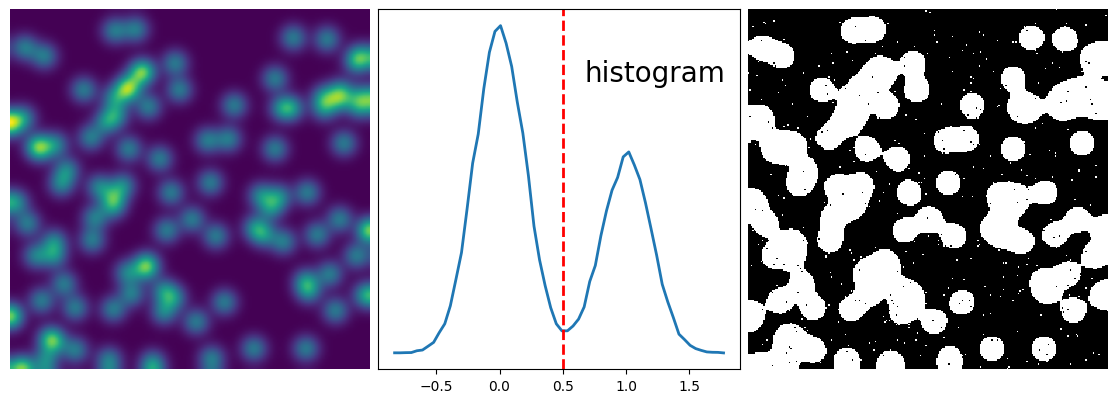

Histogram-based segmentation (no spatial information)

n = 10
l = 256
im = np.zeros((l, l))
rng = np.random.default_rng(27446968)
points = l*rng.random((2, n**2))
im[(points[0]).astype(int), (points[1]).astype(int)] = 1
im = sp.ndimage.gaussian_filter(im, sigma=l/(4.*n))

mask = (im > im.mean()).astype(float)
mask += 0.1 * im
img = mask + 0.2*rng.standard_normal(mask.shape)

hist, bin_edges = np.histogram(img, bins=60)
bin_centers = 0.5*(bin_edges[:-1] + bin_edges[1:])
binary_img = img > 0.5

Show code cell source

Hide code cell source

fig, axes = plt.subplots(1, 3, figsize=(11, 4))
axes[0].imshow(im)
axes[0].axis("off")
axes[1].plot(bin_centers, hist, lw=2)
axes[1].axvline(0.5, color="r", ls="--", lw=2)
axes[1].text(0.57, 0.8, "histogram", fontsize=20, transform=axes[1].transAxes)
axes[1].set_yticks([])
axes[2].imshow(binary_img, cmap="gray", interpolation="nearest")
axes[2].axis("off")

plt.subplots_adjust(wspace=0.02, hspace=0.3, top=1, bottom=0.1, left=0, right=1)

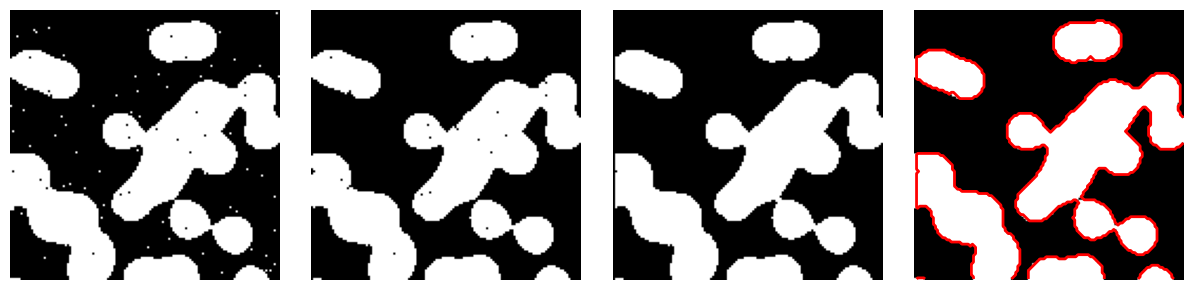

Use mathematical morphology to clean up the result:

# Remove small white regions
open_img = sp.ndimage.binary_opening(binary_img)
# Remove small black hole
close_img = sp.ndimage.binary_closing(open_img)

Show code cell source

Hide code cell source

L = 128

fig, axes = plt.subplots(1, 4, figsize=(12, 3))
for i, img_arr in enumerate([binary_img, open_img, close_img, mask]):
    axes[i].imshow(img_arr[:L, :L], cmap='gray')
    axes[i].axis("off")

axes[-1].contour(close_img[:L, :L], [0.5], linewidths=2, colors="r")

plt.subplots_adjust(wspace=0.02, hspace=0.3, top=1, bottom=0.1, left=0, right=1)

Exercise 53

Check that reconstruction operations (erosion + propagation) produce a better result than opening/closing. Start with:

eroded_img = sp.ndimage.binary_erosion(binary_img)
reconstruct_img = sp.ndimage.binary_propagation(eroded_img, mask=binary_img)

Solution to Exercise 53

eroded_img = sp.ndimage.binary_erosion(binary_img)
reconstruct_img = sp.ndimage.binary_propagation(eroded_img, mask=binary_img)
tmp = np.logical_not(reconstruct_img)
eroded_tmp = sp.ndimage.binary_erosion(tmp)
reconstruct_final = np.logical_not(sp.ndimage.binary_propagation(eroded_tmp, mask=tmp))
np.abs(mask - close_img).mean()

np.float64(0.006406997327240807)

np.abs(mask - reconstruct_final).mean()

np.float64(0.0008223210826911714)

Exercise 54

Check how a first denoising step (e.g. with a median filter) modifies the histogram, and check that the resulting histogram-based segmentation is more accurate.

See also

More advanced segmentation algorithms are found in the scikit-image: see scikit-image: image processing.

Useful algorithms from other packages

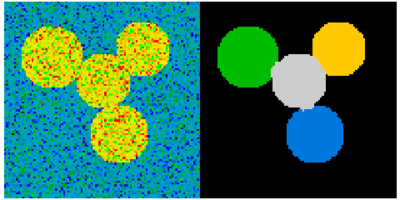

Other Scientific Packages provide algorithms that can be useful for image processing. In this example, we use the spectral clustering function of the scikit-learn in order to segment glued objects.

from sklearn.feature_extraction import image
from sklearn.cluster import spectral_clustering

l = 100
x, y = np.indices((l, l))

center1 = (28, 24)
center2 = (40, 50)
center3 = (67, 58)
center4 = (24, 70)
radius1, radius2, radius3, radius4 = 16, 14, 15, 14

circle1 = (x - center1[0])**2 + (y - center1[1])**2 < radius1**2
circle2 = (x - center2[0])**2 + (y - center2[1])**2 < radius2**2
circle3 = (x - center3[0])**2 + (y - center3[1])**2 < radius3**2
circle4 = (x - center4[0])**2 + (y - center4[1])**2 < radius4**2

# 4 circles
img = circle1 + circle2 + circle3 + circle4
mask = img.astype(bool)
img = img.astype(float)

rng = np.random.default_rng()
img += 1 + 0.2*rng.standard_normal(img.shape)
# Convert the image into a graph with the value of the gradient on
# the edges.
graph = image.img_to_graph(img, mask=mask)

# Take a decreasing function of the gradient: we take it weakly
# dependent from the gradient the segmentation is close to a voronoi
graph.data = np.exp(-graph.data/graph.data.std())

labels = spectral_clustering(graph, n_clusters=4, eigen_solver='arpack')
label_im = -np.ones(mask.shape)
label_im[mask] = labels

Measuring object properties: scipy.ndimage.measurements

Synthetic data:

n = 10
l = 256
im = np.zeros((l, l))
rng = np.random.default_rng(27446968)
points = l * rng.random((2, n**2))
im[(points[0]).astype(int), (points[1]).astype(int)] = 1
im = sp.ndimage.gaussian_filter(im, sigma=l/(4.*n))
mask = im > im.mean()

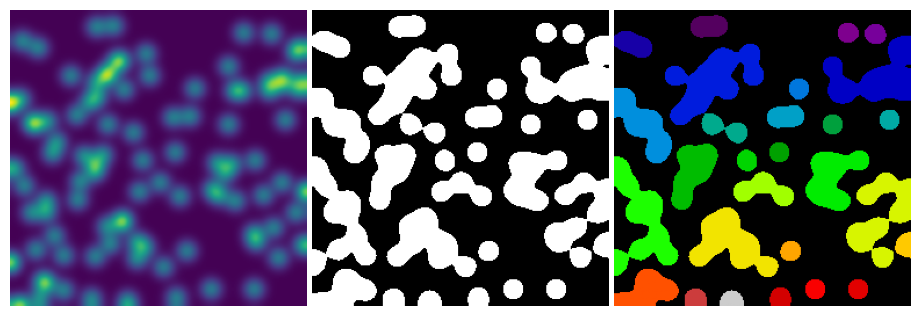

Analysis of connected components

Label connected components: scipy.dimage.label:

label_im, nb_labels = sp.ndimage.label(mask)
nb_labels # how many regions?

28

Show code cell source

Hide code cell source

fig, axes = plt.subplots(1, 3, figsize=(9, 3))
for i, (img_arr, cmap) in enumerate([
    [im, 'viridis'],
    [mask, 'gray'],
    [label_im, 'nipy_spectral']]):
    axes[i].imshow(img_arr, cmap=cmap)
    axes[i].axis("off")

plt.subplots_adjust(wspace=0.02, hspace=0.02, top=1, bottom=0, left=0, right=1);

Compute size, mean_value, etc. of each region:

sizes = sp.ndimage.sum(mask, label_im, range(nb_labels + 1))
mean_vals = sp.ndimage.sum(im, label_im, range(1, nb_labels + 1))

Clean up small connect components:

mask_size = sizes < 1000
remove_pixel = mask_size[label_im]
remove_pixel.shape

(256, 256)

label_im[remove_pixel] = 0

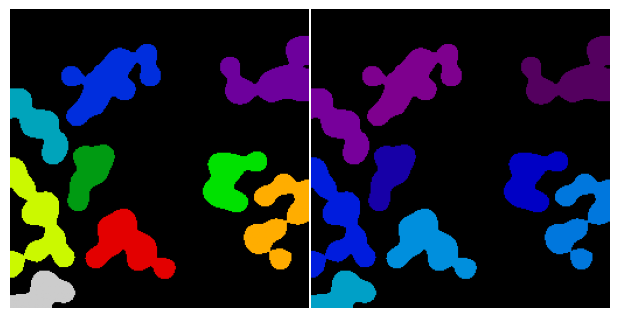

Now reassign labels with np.searchsorted:

labels = np.unique(label_im)
label_im = np.searchsorted(labels, label_im)

Show code cell source

Hide code cell source

fig, axes = plt.subplots(1, 2, figsize=(6, 3))
axes[0].imshow(label_im, cmap="nipy_spectral")
axes[0].axis("off")
axes[1].imshow(label_im, vmax=nb_labels, cmap="nipy_spectral")
axes[1].axis("off")

plt.subplots_adjust(wspace=0.01, hspace=0.01, top=1, bottom=0, left=0, right=1)

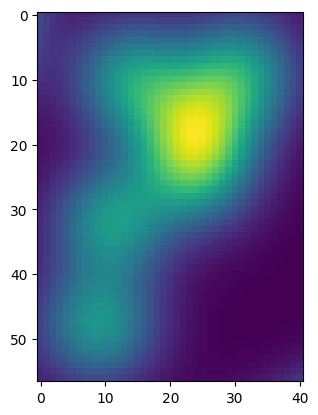

Find region of interest enclosing object:

slice_x, slice_y = sp.ndimage.find_objects(label_im)[3]
roi = im[slice_x, slice_y]
plt.imshow(roi);

Other spatial measures: scipy.ndimage.center_of_mass, scipy.ndimage.maximum_position, etc.

Can be used outside the limited scope of segmentation applications.

Example: block mean:

f = sp.datasets.face(gray=True)
sx, sy = f.shape
X, Y = np.ogrid[0:sx, 0:sy]
regions = (sy//6) * (X//4) + (Y//6)  # note that we use broadcasting
block_mean = sp.ndimage.mean(f, labels=regions, index=np.arange(1,
    regions.max() +1))
block_mean.shape = (sx // 4, sy // 6)

Show code cell source

Hide code cell source

plt.figure(figsize=(5, 5))
plt.imshow(block_mean, cmap="gray")
plt.axis("off");

When regions are regular blocks, it is more efficient to use stride tricks (Example: fake dimensions with strides).

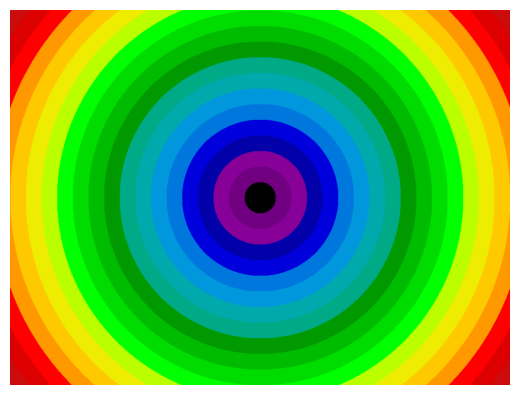

Non-regularly-spaced blocks: radial mean:

sx, sy = f.shape
X, Y = np.ogrid[0:sx, 0:sy]
r = np.hypot(X - sx/2, Y - sy/2)
rbin = (20* r/r.max()).astype(int)
radial_mean = sp.ndimage.mean(f, labels=rbin, index=np.arange(1, rbin.max() +1))

Show code cell source

Hide code cell source

plt.figure(figsize=(5, 5))
plt.axes((0, 0, 1, 1))
plt.imshow(rbin, cmap="nipy_spectral")
plt.axis("off");

Other measures

Correlation function, Fourier/wavelet spectrum, etc.

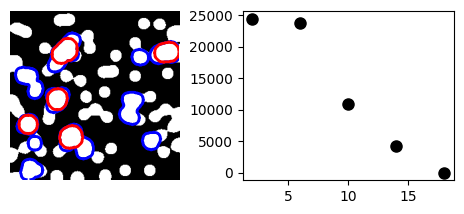

One example with mathematical morphology: granulometry

def disk_structure(n):
    struct = np.zeros((2 * n + 1, 2 * n + 1))
    x, y = np.indices((2 * n + 1, 2 * n + 1))
    mask = (x - n)**2 + (y - n)**2 <= n**2
    struct[mask] = 1
    return struct.astype(bool)

def granulometry(data, sizes=None):
    s = max(data.shape)
    if sizes is None:
        sizes = range(1, s/2, 2)
    granulo = [sp.ndimage.binary_opening(data, \
        structure=disk_structure(n)).sum() for n in sizes]
    return granulo

rng = np.random.default_rng(27446968)
n = 10
l = 256
im = np.zeros((l, l))
points = l*rng.random((2, n**2))
im[(points[0]).astype(int), (points[1]).astype(int)] = 1
im = sp.ndimage.gaussian_filter(im, sigma=l/(4.*n))

mask = im > im.mean()
granulo = granulometry(mask, sizes=np.arange(2, 19, 4))

Show code cell source

Hide code cell source

# Do the plot.
plt.figure(figsize=(6, 2.2))
plt.subplot(121)
plt.imshow(mask, cmap="gray")

<matplotlib.image.AxesImage at 0x119031f10>

opened = sp.ndimage.binary_opening(mask, structure=disk_structure(10))
opened_more = sp.ndimage.binary_opening(mask, structure=disk_structure(14))

Show code cell source

Hide code cell source

fig, axes = plt.subplots(1, 2, figsize=(6, 2.2))
axes[0].imshow(mask, cmap="gray")
axes[0].contour(opened, [0.5], colors="b", linewidths=2)
axes[0].contour(opened_more, [0.5], colors="r", linewidths=2)
axes[0].axis("off")
axes[1].plot(np.arange(2, 19, 4), granulo, "ok", ms=8)

[<matplotlib.lines.Line2D at 0x112c8ef00>]

See also

More on image-processing:

• The chapter on Scikit-image

• Other, more powerful and complete modules: OpenCV (Python bindings), CellProfiler, ITK with Python bindings
